Renishaw Five Direction Tool Setting Instrument Ts27r For Cnc Machine Tools, Cnc Machining Centers, Cutting Tools

Brand Name : Renishaw

Model Number : TS27R

Certification : CE GS

Place of Origin : England

MOQ : 1

Price : USD95.0-1220.00

Payment Terms : T/T,Western Union,MoneyGram

Supply Ability : 50unit/Month

Delivery Time : 2-3days

Packaging Details : carton or wooden pack

Contact Now

The Renishaw five direction tool setting instrument is used for CNC machine tools CNC machining center, tool, tool length, tool diameter, skew measurement, broken tool detection, tool positioning, wear, damage detection. It is a special measuring system for various types of vertical, horizontal and gantry machining centers. It adopts wire and cable connection to continue real-time communication with CNC machine tools, and the measuring signal of the probe is output to the CNC system through the cable in real time, with the special macro sequence. Out of the trip will occur alarm signal, can prevent damage accidents!

/Product name	Renishaw five direction tool setting instrument
/Model	TS27R
/Brand	Renishaw
/Output mode	Hardwire connection for transmission
/The contact diameter	14-20mm
Receive/interface	M18-4 orHSI/M18-4orHSI
SliRecommend measuring needle	Disc needle or square needle
/Pretravel	0
/Direction of measurement	±X, ±Y, +Z
/Repeatability	0.001 mm (Operating speed 50-200mm/min)
/Contact life	300million times/3 million times
/Protection architecture	IP68
/contact force	1.3-2.4 Depends on the direction of induction)
Contact part material	1 Tungsten steel/ceramic
Aspect processing method	Grinding 4S mirror
Cable	Standard configuration 10M (diameter 4.35mm, 4-core shielded cable)
Install	M12T bolt
Needle quality was measured with disc shape	1055g
/Working Temperature	+5°C~60oC
/storage temperature	-10°C~+70°C

Renishaw Five Direction Tool Setting Instrument Ts27r For Cnc Machine Tools, Cnc Machining Centers, Cutting Tools

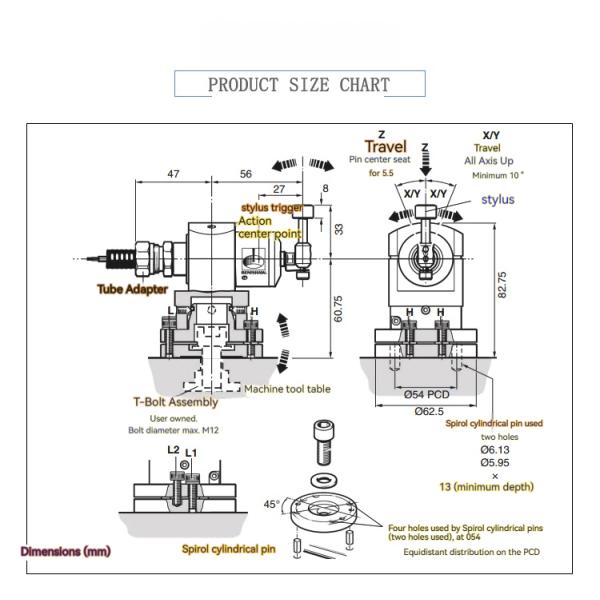

Renishaw Five Direction Tool Setting Instrument Ts27r For Cnc Machine Tools, Cnc Machining Centers, Cutting Tools Images
