Photoelectric Tool Setter/sensor M86-20(tool Face 20mm)

Brand Name : METROL

Model Number : M86-20

Certification : CE GS

Place of Origin : Japan

MOQ : 1

Price : USD125-USD155

Payment Terms : T/T,Western Union,MoneyGram

Supply Ability : 2000unit/month

Delivery Time : 2-3days

Packaging Details : hard box

Contact Now

Products Description
The Photoelectric Tool Setter/sensor M86-20 is a cable-connected measuring system for fast, precise and automatic tool length measurement on machining centers and tool breakage monitoring. Thanks to the robust mechanical design and the photoelectric triggering principle, it guarantees the highest measuring accuracy even in harsh operating environments. An alarm signal is generated when the stroke is exceeded, preventing breakage accidents. Suitable for use on machining centers and CNC controlled machines.
Product Paramenters
Product Name
Photoelectric Tool Setting Instruments/Sensors
Product Model
m86d-20
Output Mode
-1:NO(Normally open)

-2:NC(Normally closed)
Working Mode
Triggered by photosensitive device (non-contact structure)
Working power supply
DC5-24V
Trigger stroke
2mm
Repeatability
0.002mm (condition: operating speed 50-200mm/min)
Electrical life
6 million times
Protection structure
IP68 (100 meters water/oil/corrosion resistant)
Trigger gravity
0.8N(Installation status must be vertical)
Counterblade material
Super hard tungsten steel
Counterblade Diameter
20mm
Surface Finish
Grinding 4S
Load rating
DC24V/20mA(MAX) Recommended value 10mA resistive load
Cable Specification
Standard 5M oil-resistant 6-core wire (length can be customized)
Cable Sheath
8mm/304 stainless steel protection tube/L1.5 meters
Work Indicator
The first signal indicator is green, the second signal indicator is red
Over-travel alarm signal
Output Mode
NC Normally Closed (Emergency stop when signal is disconnected)
Load rating
DC24V/20mA(MAX) Recommended value 10mA resistive load

Photoelectric Tool Setter/sensor M86-20(tool Face 20mm)


Quality Photoelectric Tool Setter/sensor M86-20(tool Face 20mm) for sale

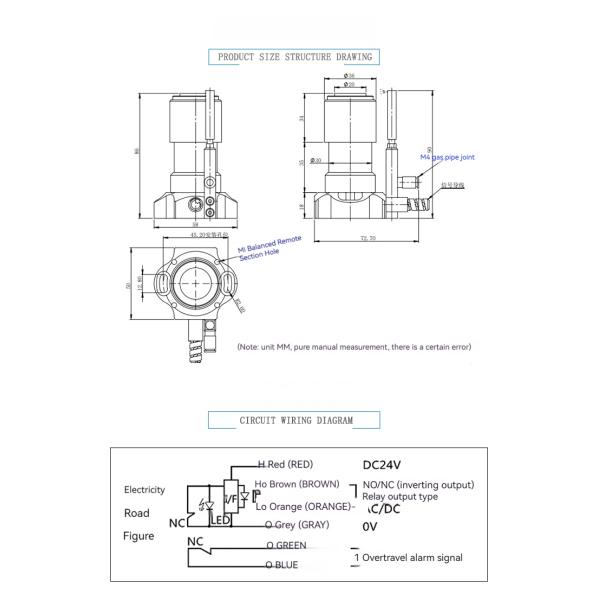

Photoelectric Tool Setter/sensor M86-20(tool Face 20mm) Images
