High Precision Wired Probe Sensor With Led Indicators Mp25-1

Brand Name : MP

Model Number : MP25-1

Certification : CE GS

Place of Origin : China

MOQ : 1

Price : USD520-USD650

Payment Terms : T/T,Western Union,MoneyGram

Supply Ability : 1000unit/week

Delivery Time : 2-3days

Packaging Details : carton or wooden pack

Contact Now

Product Description

Product Name	Wired Probes
Product Model	MP25-1
Repeat Positioning Accuracy	≤0.001mm (Probe: 50mm, Speed: 50~200mm/min)
Signal transmission method	Cable
Stylus sensing direction	X, ±Y, +Z
Departure protection stroke	XY plane 12.5°, 2-way 6.35mm
Measuring speed	<5m/min
Trigger life	≥10 million times
Body material	Stainless steel 316
Cable specification	Standard 5 meters Oil-resistant 4-core Φ5mm
Protection class	IP68(double sealing)
Power supply	12~30VDC
Operating Temperature	10℃ to 40℃
Storage Temperature	-20℃ to 70℃
Indicator Light	With LED indicator
Net Weight	327g
Gross Weight	610g
Warranty	12 months

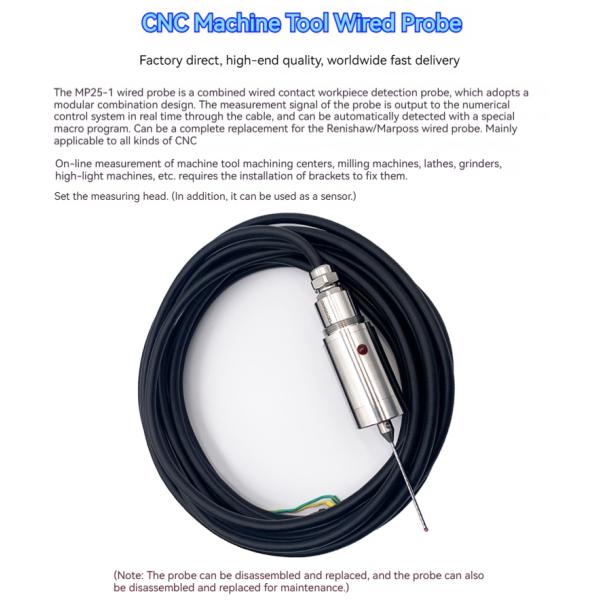

Wired probe MP25-1 series, suitable for use in CNC machining centers, milling machines, lathes, grinders, precision engraving machines, high-gloss machines, engraving machines, batch processing of parts in the field, etc., with a cable connection with the CNC machine tool to continue to communicate in real time, the measurement signals of the probe through the cable to the real-time output to the CNC system, with a special macro program can be realized automatically.

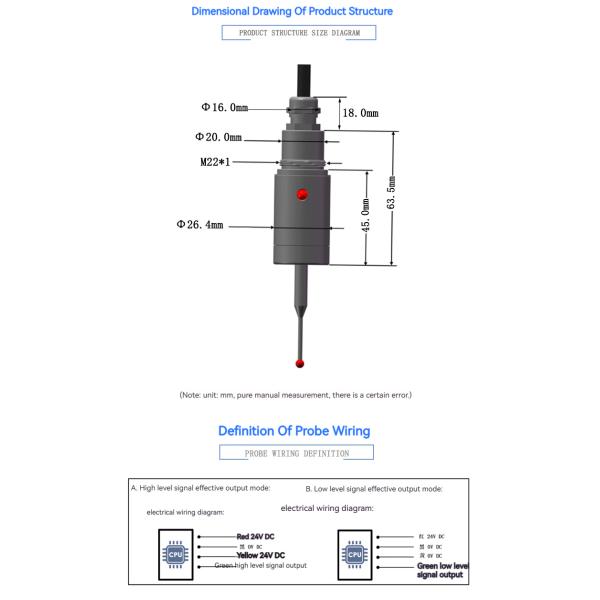

Product Parameters

High Precision Wired Probe Sensor With Led Indicators Mp25-1

High Precision Wired Probe Sensor With Led Indicators Mp25-1 Images
